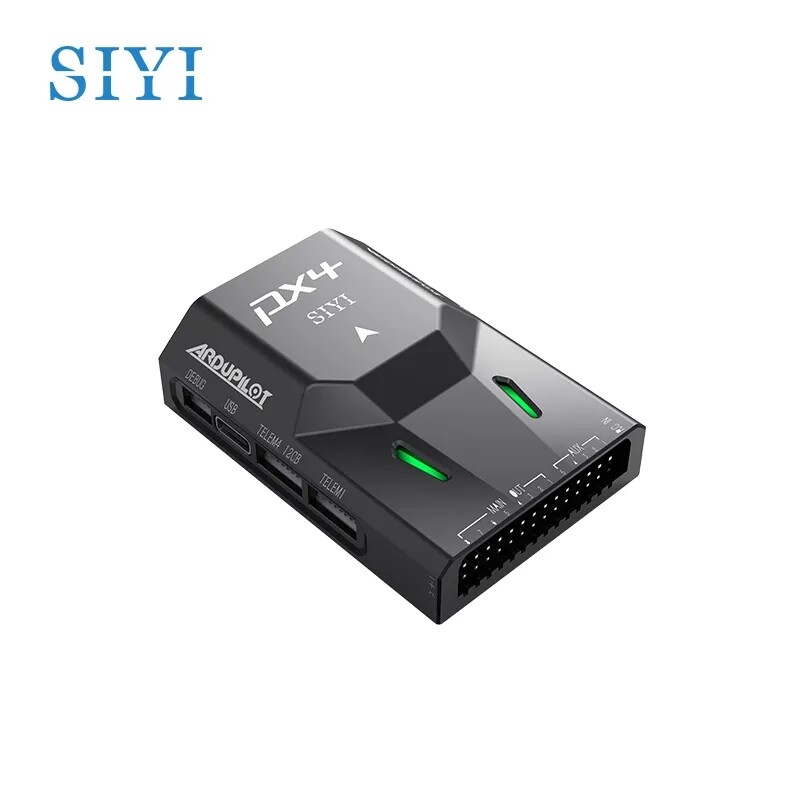

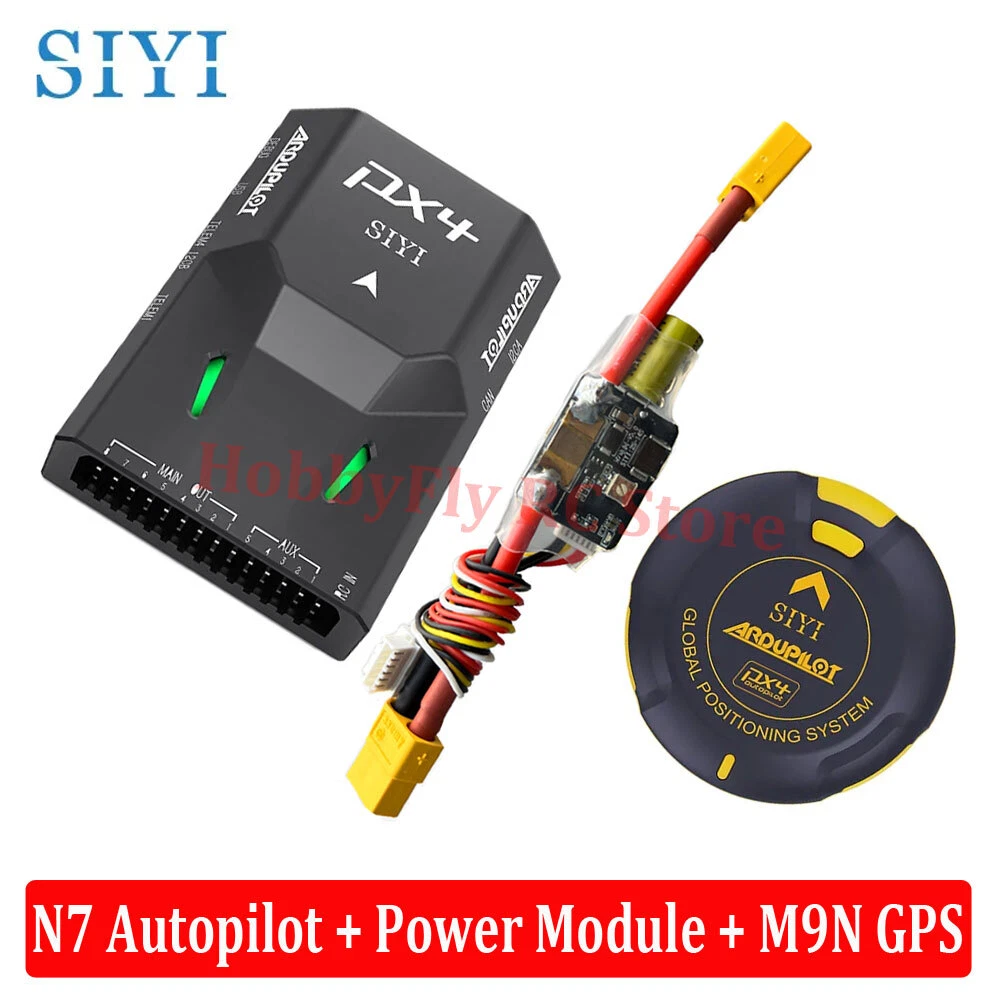

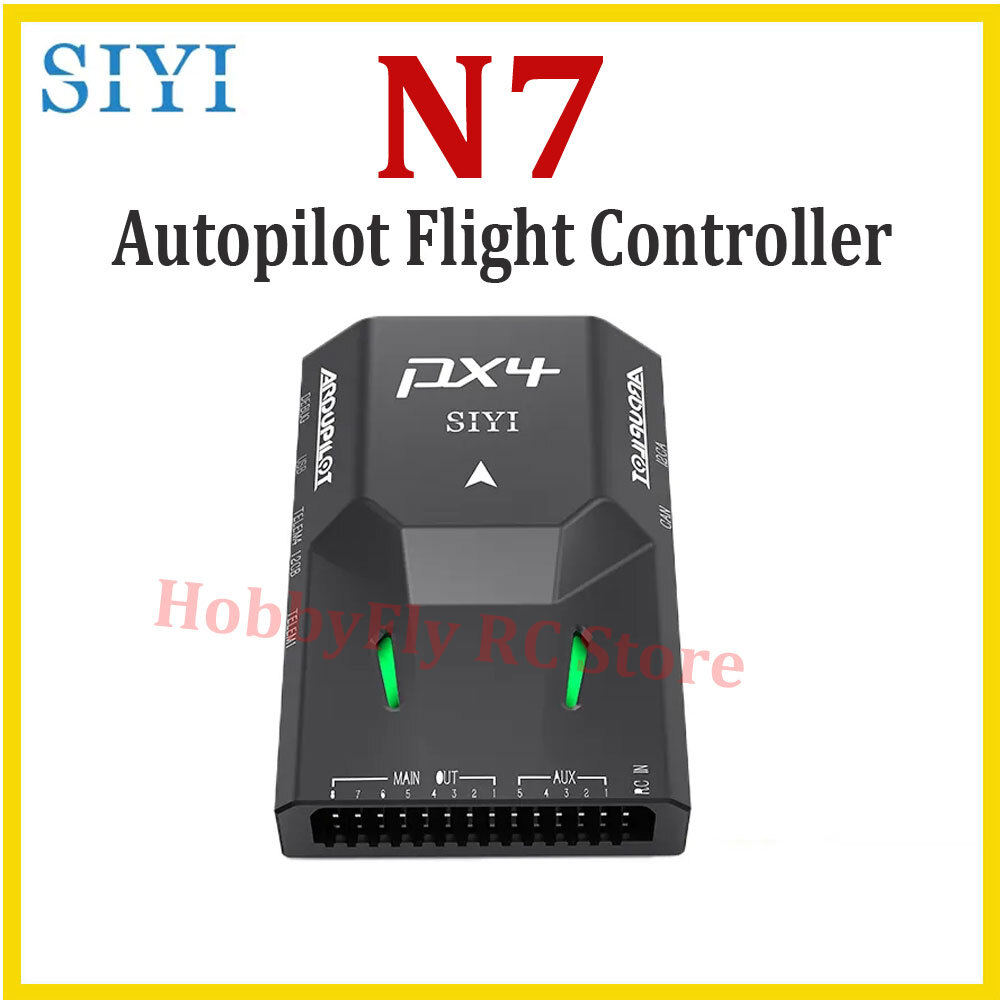

SIYI N7 Autopilot Flight Controller for Ardupilot&PX4 Ecosystem M9N GPS Power
$ 173.22
Description

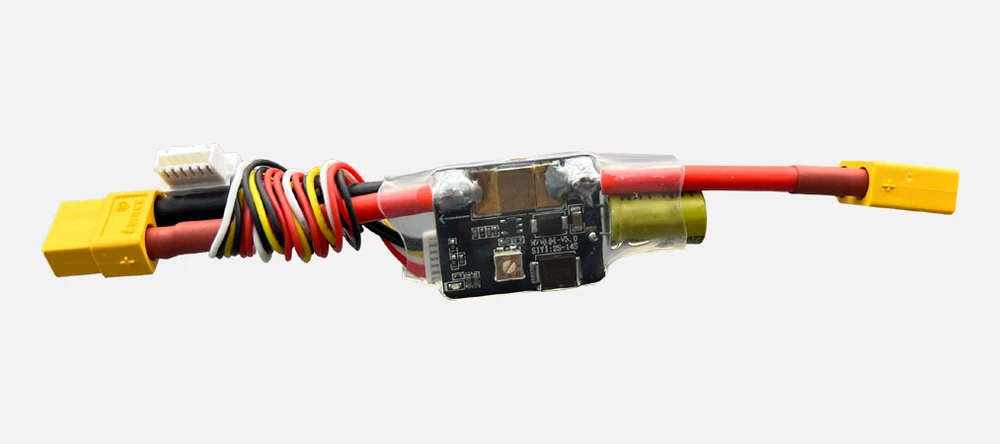

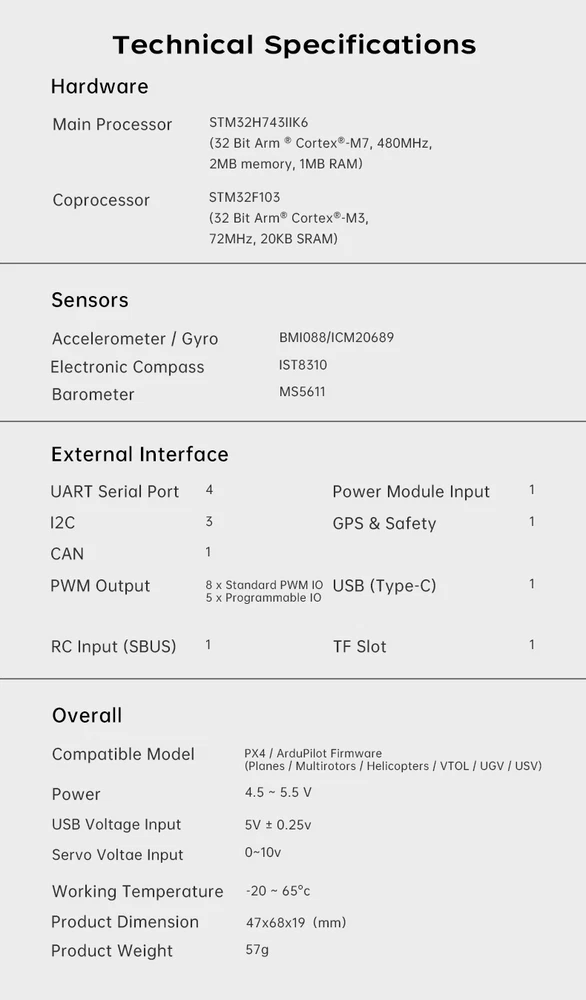

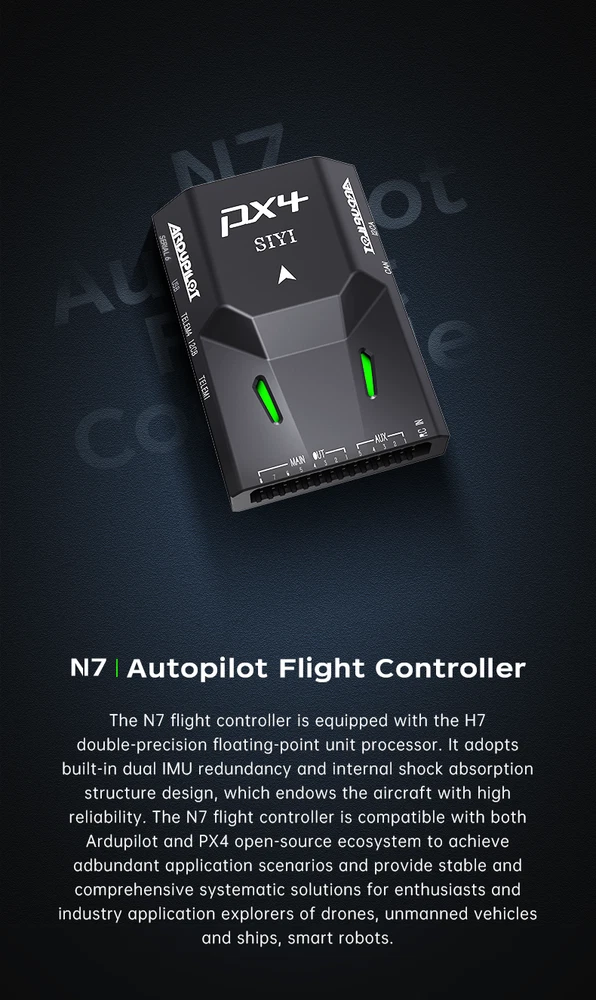

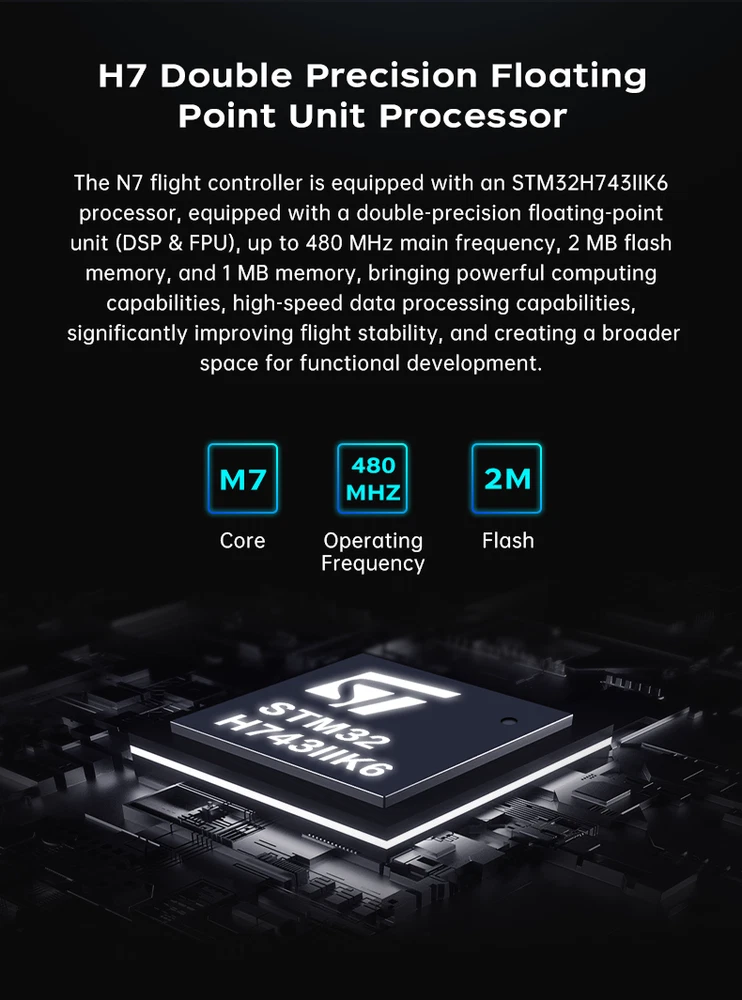

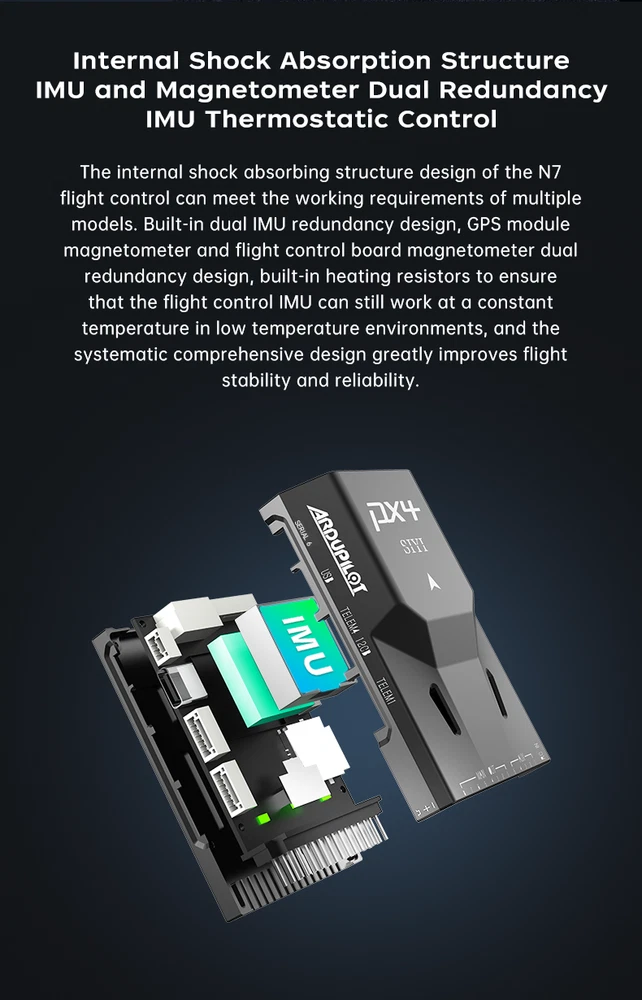

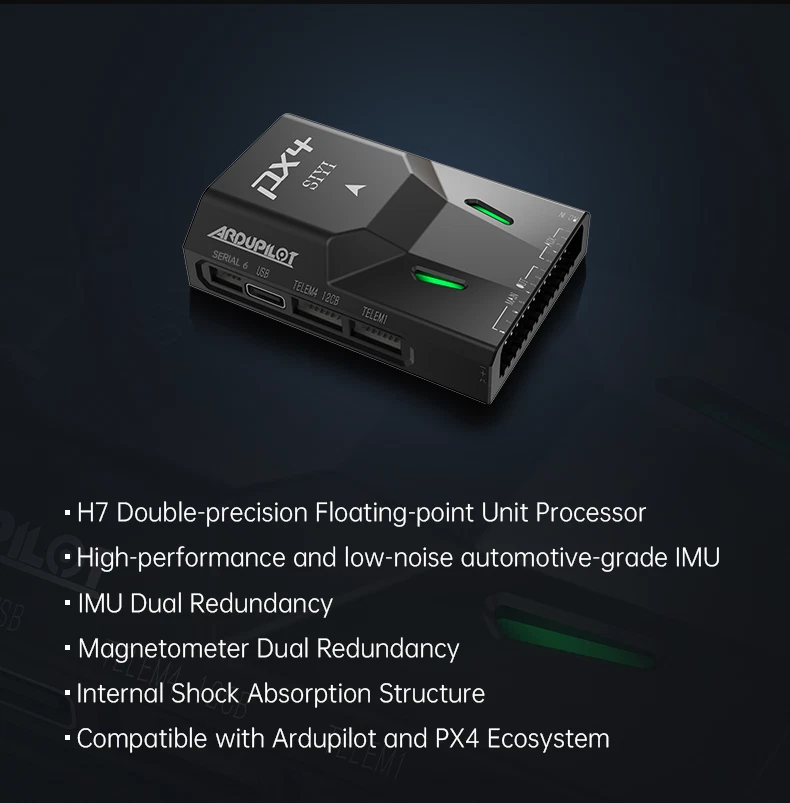

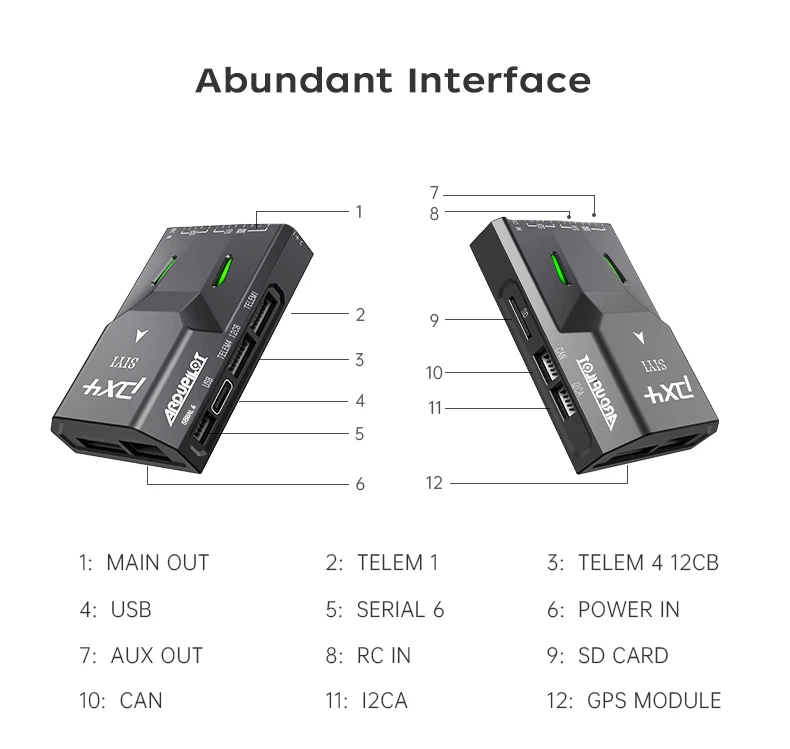

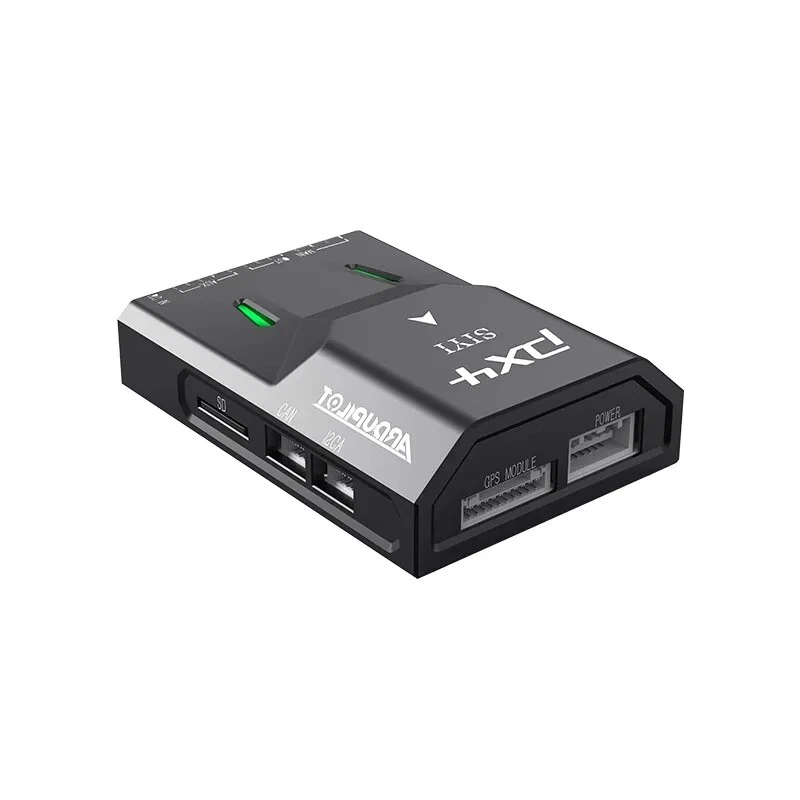

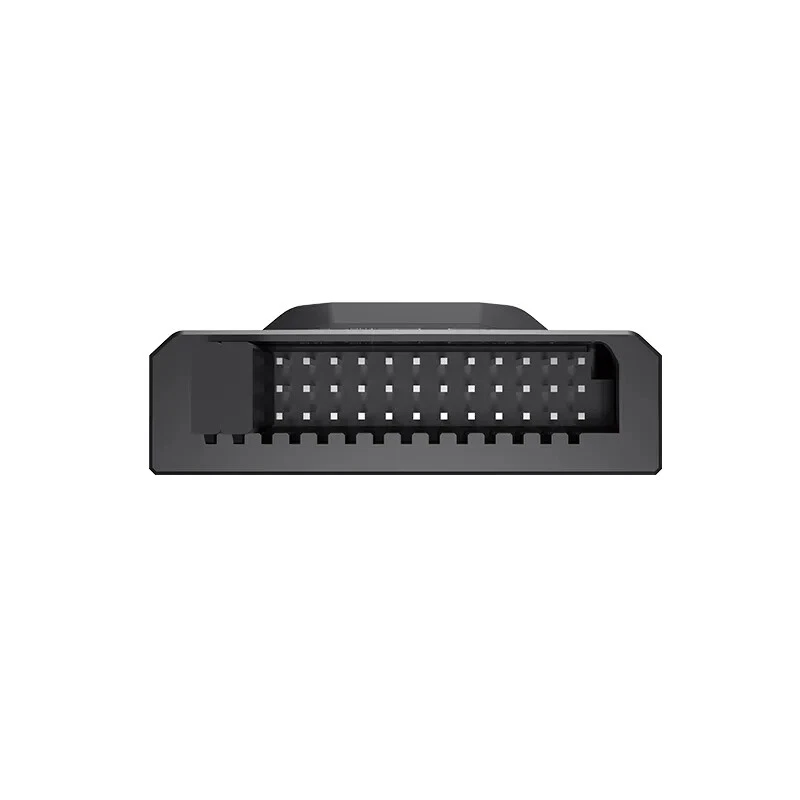

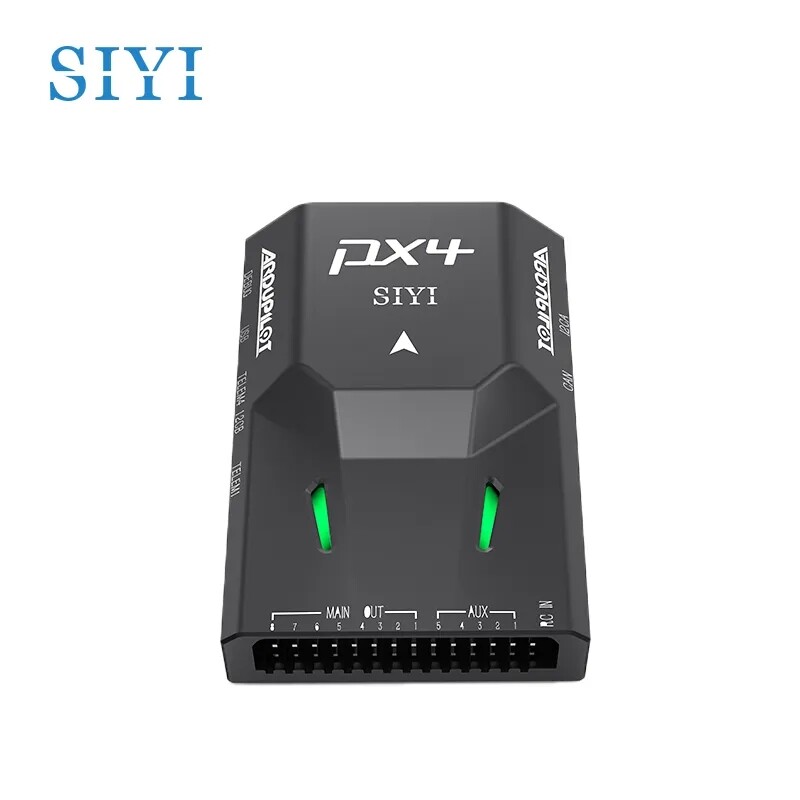

SIYI N7 Autopilot Flight Controller The SIYI N7 flight controller is equipped with the H7 double-precision floating-point unit processor. It adoptsbuilt-in dual IMU redundancy and internal shock absorption structure design, which endows the aircraft with highreliability. The N7 flight controller is compatible with both Ardupilot and PX4 open-source ecosystem to achieve adbundant application scenarios and provide stable andcomprehensive systematic solutions for enthusiasts andindustry application explorers of drones, unmanned vehicles and ships, smart robots. Specifications: Hardware Main Processor: STM32H743IIK6 (32 Bit Arm Cortex-M7, 480 MHz, 2 MB memory, 1 MB RAM) Coprocessor: STM32F103 (32 Bit Arm Cortex-M3, 72 MHz, 20 KB SRAM) Sensors Accelerometer / Gyro: BMI088 / ICM20689 Electronic Compass: IST8310 Barometer: MS5611 External Interface UART Serial Port: 4 I2C: 3 CAN: 1 PWM Output: - 8 x Standard PWM IO - 5 x Programmable IO RC Input (SBus): 1 Power Module Input: 1 GPS & Safety: 1 USB (Type-C): 1 TF Slot: 1 Overall Compatible Model: PX4 / Ardupilot Firmware (Planes / Multirotors / Helicopters / VTOL / UGV / USV) Power Module Voltage Input: 4.5 ~ 5.5 V USB Voltage Input: 5 V ( ± 0.25 V) Servo Voltage: 0 ~ 10 V Working Temperature: -20 ~ 65 ℃ Product Dimension: 47 x 68 x 19 mm Product Weight: 57g
